QS-220 2.5DOF Actuators Pivot Set

21.663,00 zł
21.663,00 zł 21.663,00 zł
Tax included. Shipping calculated at checkout.

A compact, high-impact motion starter kit built around QS-220 actuators and the dedicated QS-Pivot geometry. This 2.5DOF setup delivers strong pitch and roll cues with an enhanced sense of vertical load transfer and road texture - without the footprint of a full multi-actuator platform. Controlled through Qubic Manager.

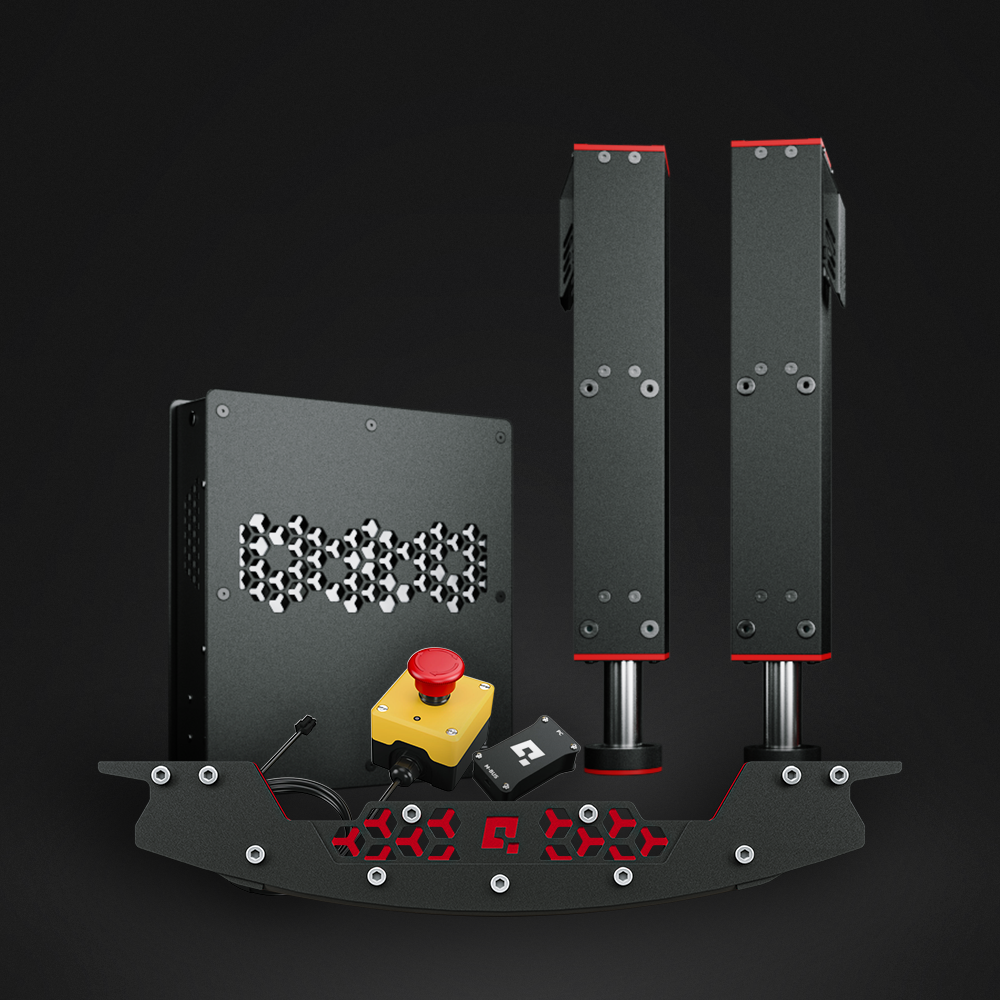

What’s included (bundle contents)

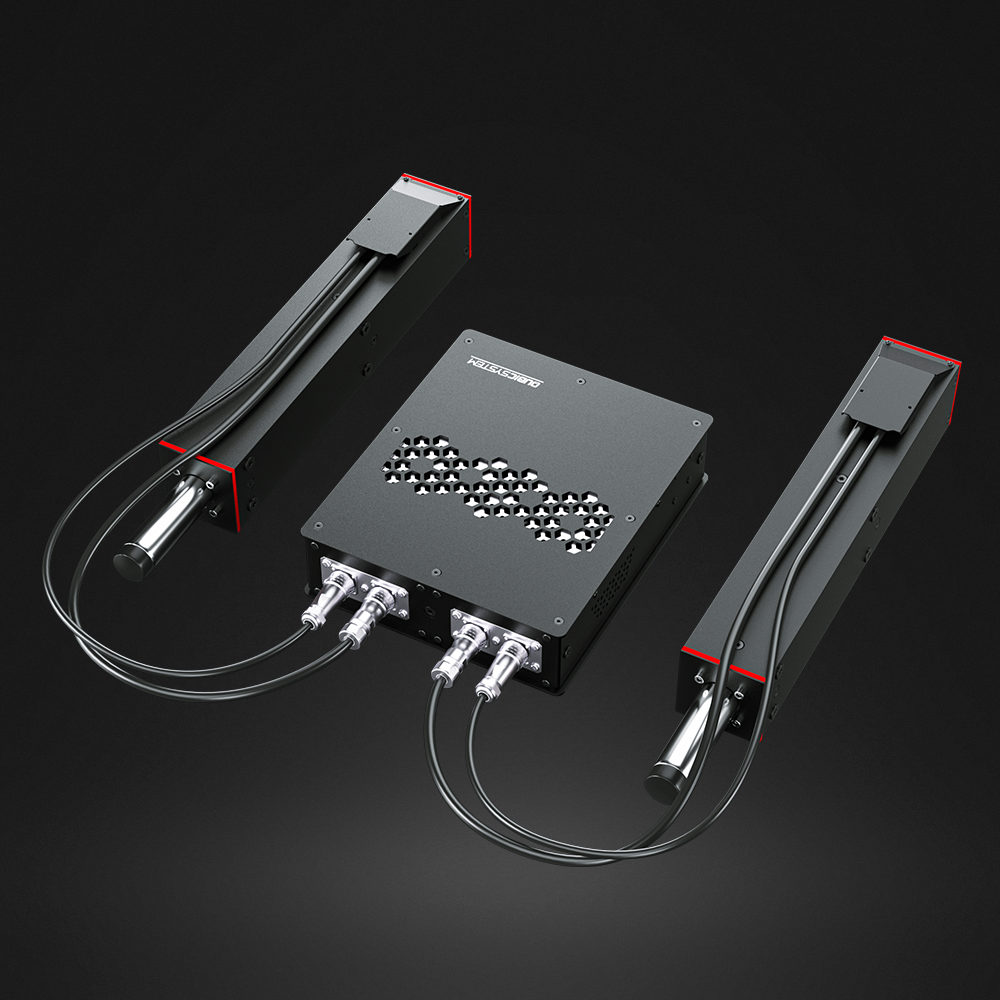

  • QS-220 motion set - 2 actuators + power cabinet
  • QS-Pivot
  • QS-MC6 (MOTION-LOCK Switch + M10 Controller)

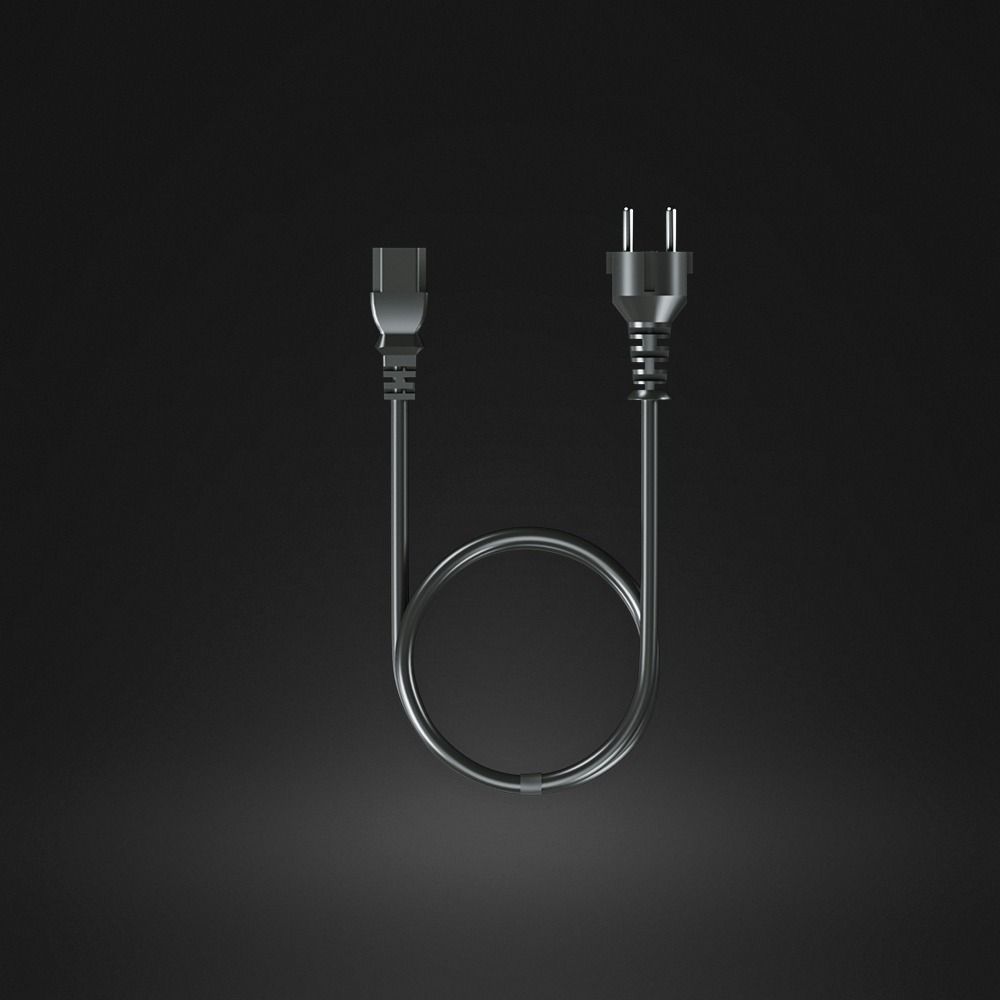

  • Power cable (region specific)
Power plug: EU
Brand: Qubic System
Availability: 5 in stock
SKU: QS-220-PIVOTSET-EU
Collections:
Qubic SystemQS-H13 Seat Mover
QS-H13 Seat Mover

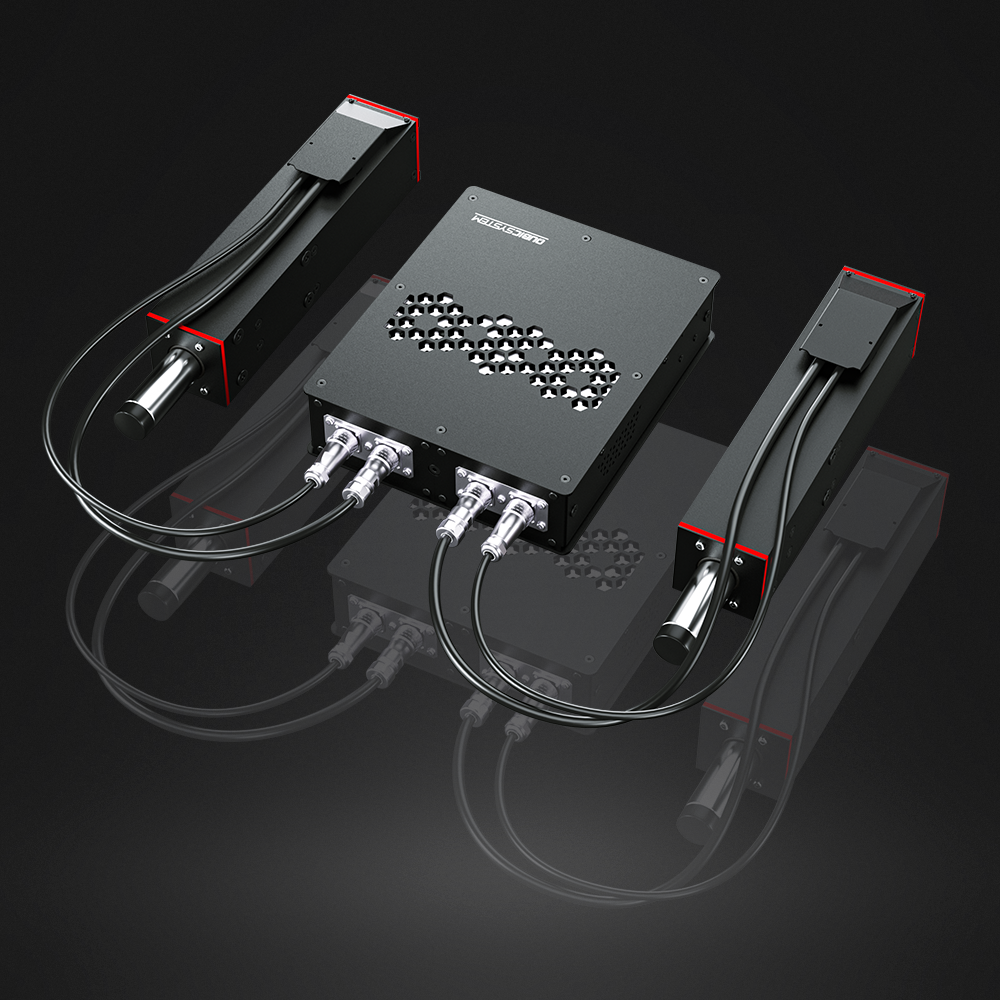

QS-210 Actuator Upgrade Set to 3DOF
Qubic SystemQS-210 Actuator Upgrade Set to 3DOF
21.663,00 zł
21.663,00 zł 21.663,00 zł

The QS-220 2.5DOF Pivot Set is designed for sim racers and professional users who want intense, high-end motion sensations in a compact configuration. By pairing QS-220 industrial-grade linear actuators with the dedicated QS-Pivot geometry, it creates a unique "2.5DOF" experience - strong pitch and roll cues with a convincing perception of vertical load transfer, bumps, and chassis movement, all while keeping the overall footprint and complexity lower than a full multi-module actuator build.

QS-220 is the higher-stroke actuator system in the Qubic ecosystem, engineered for demanding applications where motion range and responsiveness matter. With 100 mm stroke actuators, low latency control, and real-time vibration detail, it delivers precise feedback for braking, acceleration, direction changes, curb strikes, and surface texture. Everything is managed through Qubic Manager, using the same game-specific profiles and tuning workflow as larger Qubic System motion cockpits.

Note: "Heave" is simulated as a heave motion pattern combined from the pitch axis.

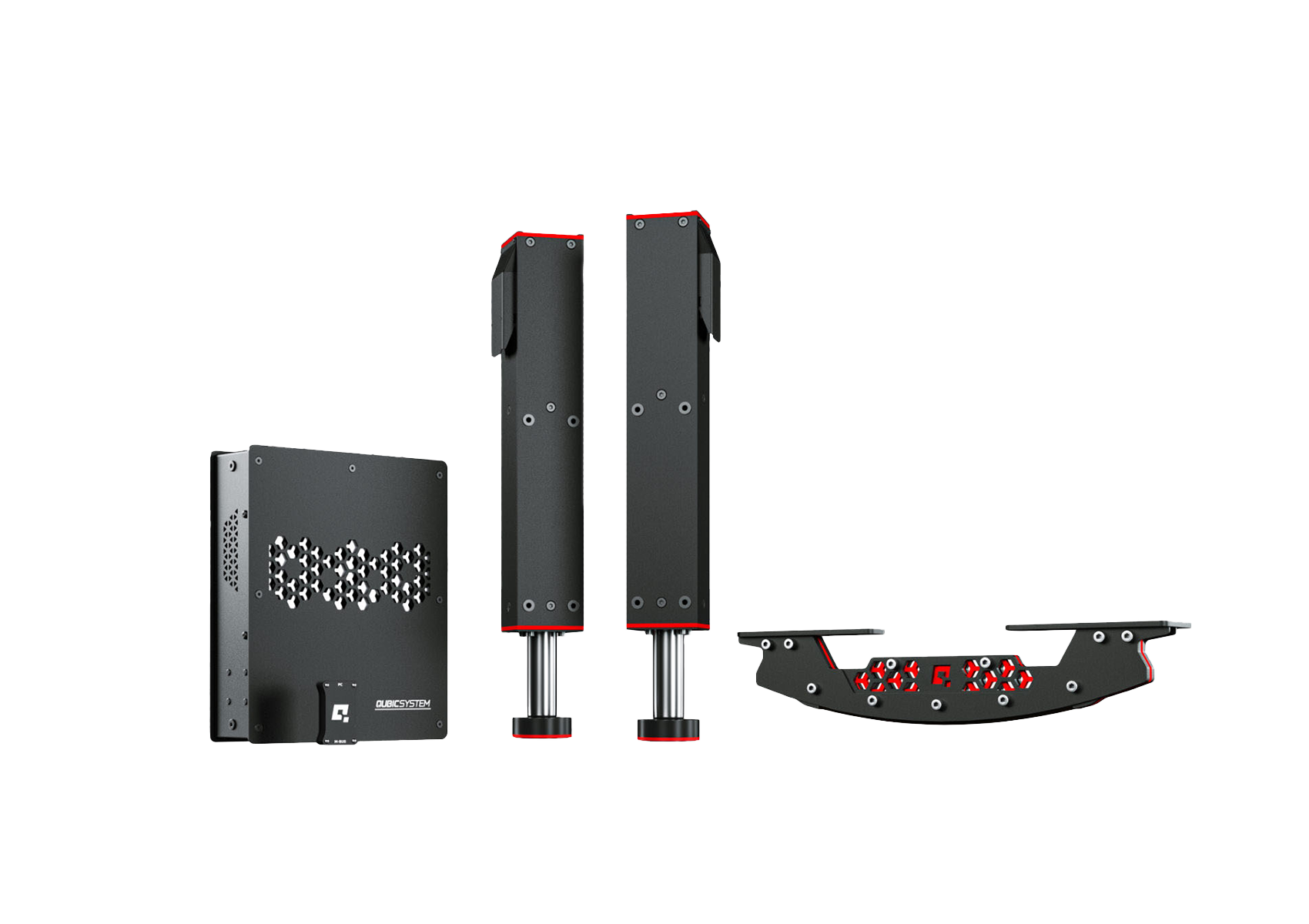

Pivot Set 2.5 DOF Configuration

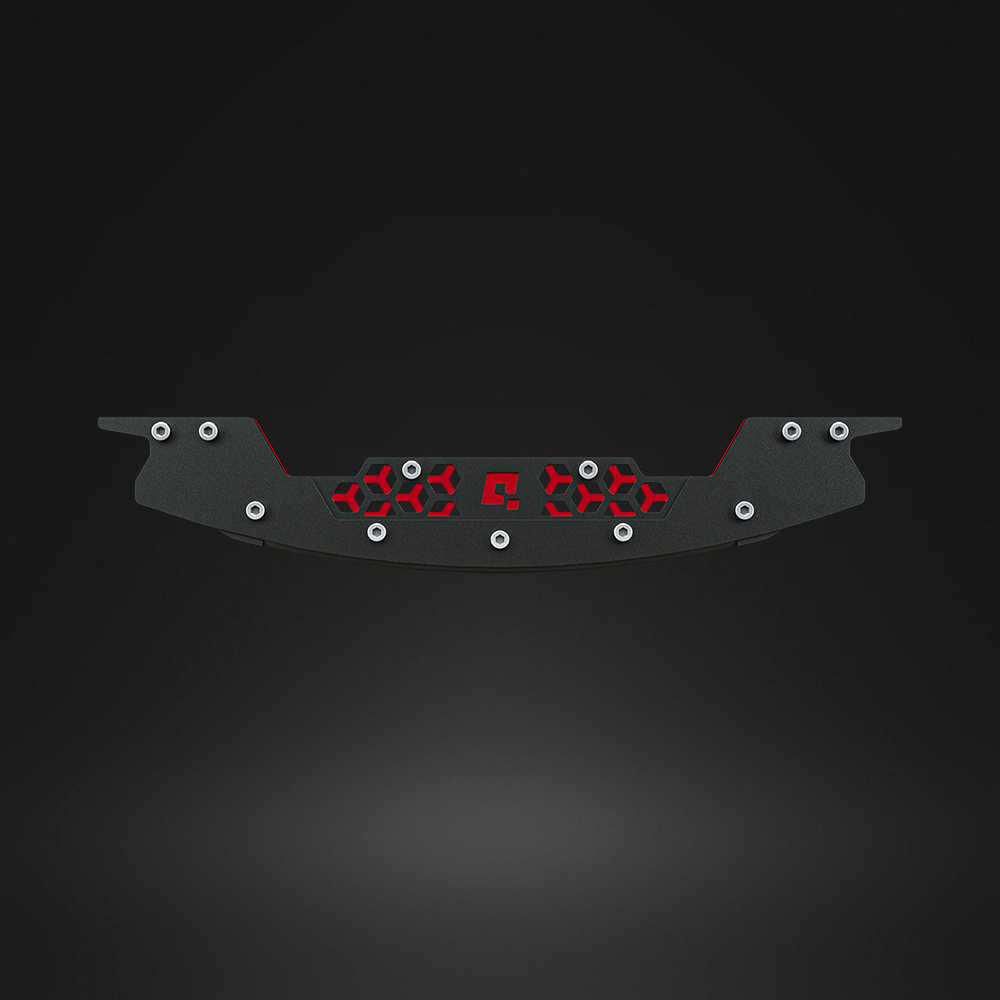

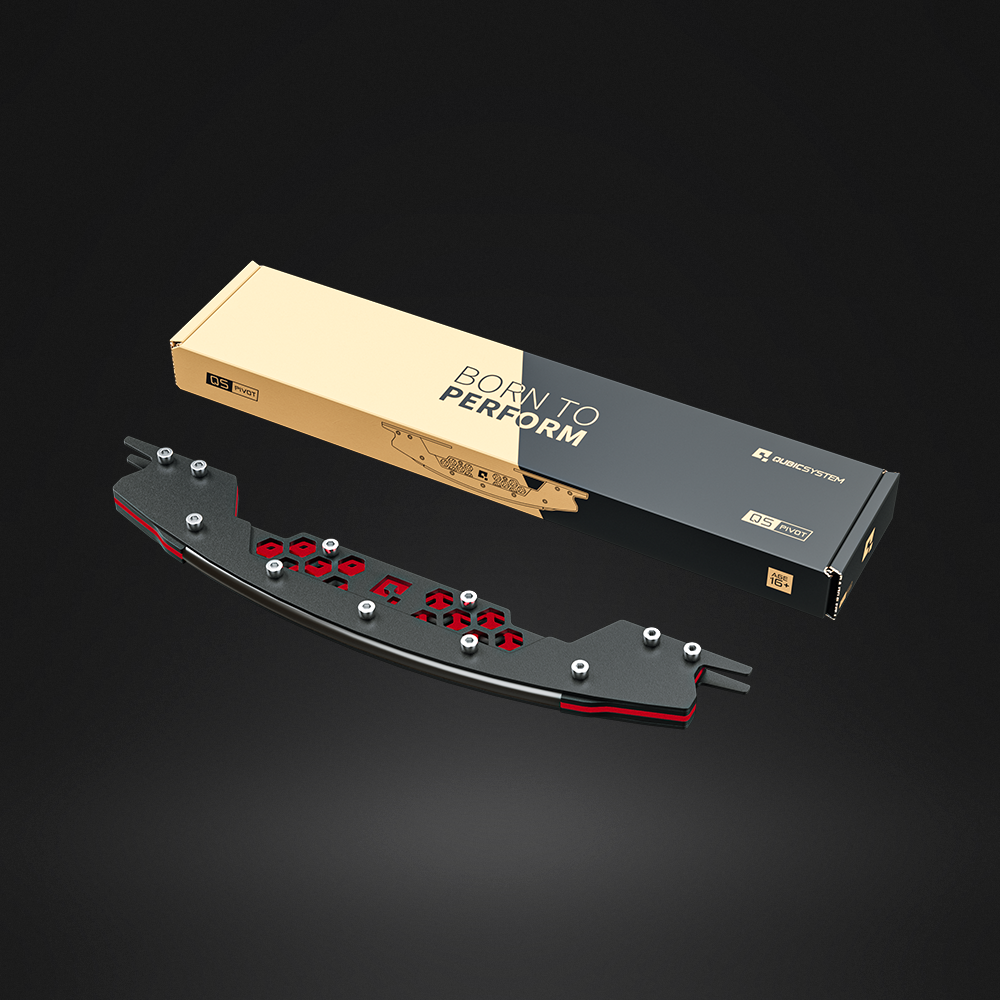

QS-Pivot is an innovative accessory designed for users seeking the intense sensations typically found in high-end simulators. When combined with QS-210 or QS-220 actuators, it creates a unique 2.5 DOF* configuration that delivers full immersion in driving simulation.

The Pivot Set is also a smart long-term choice because it is modular. When you are ready to step up, you can replace the pivot by adding two more actuators to reach a full 3DOF configuration, without rebuilding your rig or changing the overall QS platform concept.

Plug & Perform

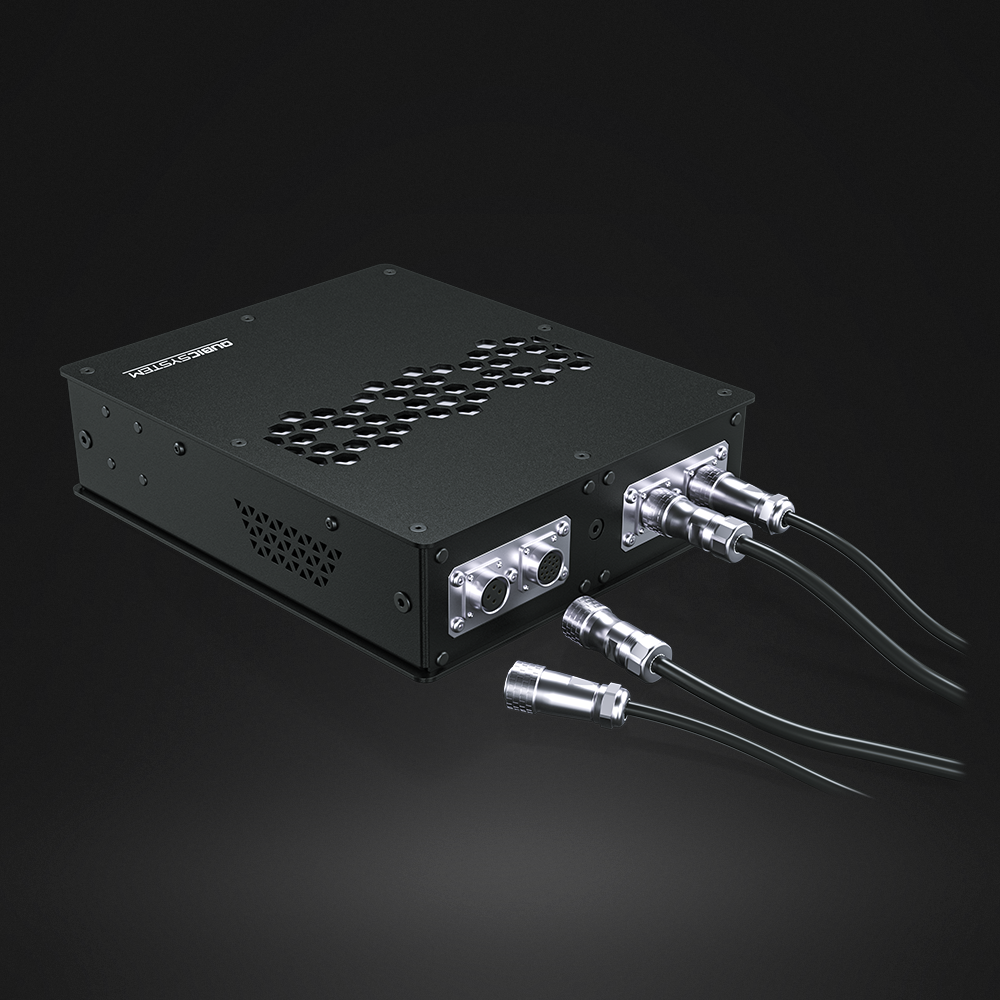

We’ve equipped our latest power cabinets and actuators with a new generation of connectors. Built with a chrome-plated brass shell and a shielded structure, they offer solid robust protection against electromagnetic interference.

This protects your health and EMC-sensitive equipment because such protection is impossible with plastic connectors massively used in the simracing/simulation market (they are not properly shielded).

What’s more, they’re fully detachable, which makes installation very easy without the need for technical skills and far less time-consuming.

Enhance Stability

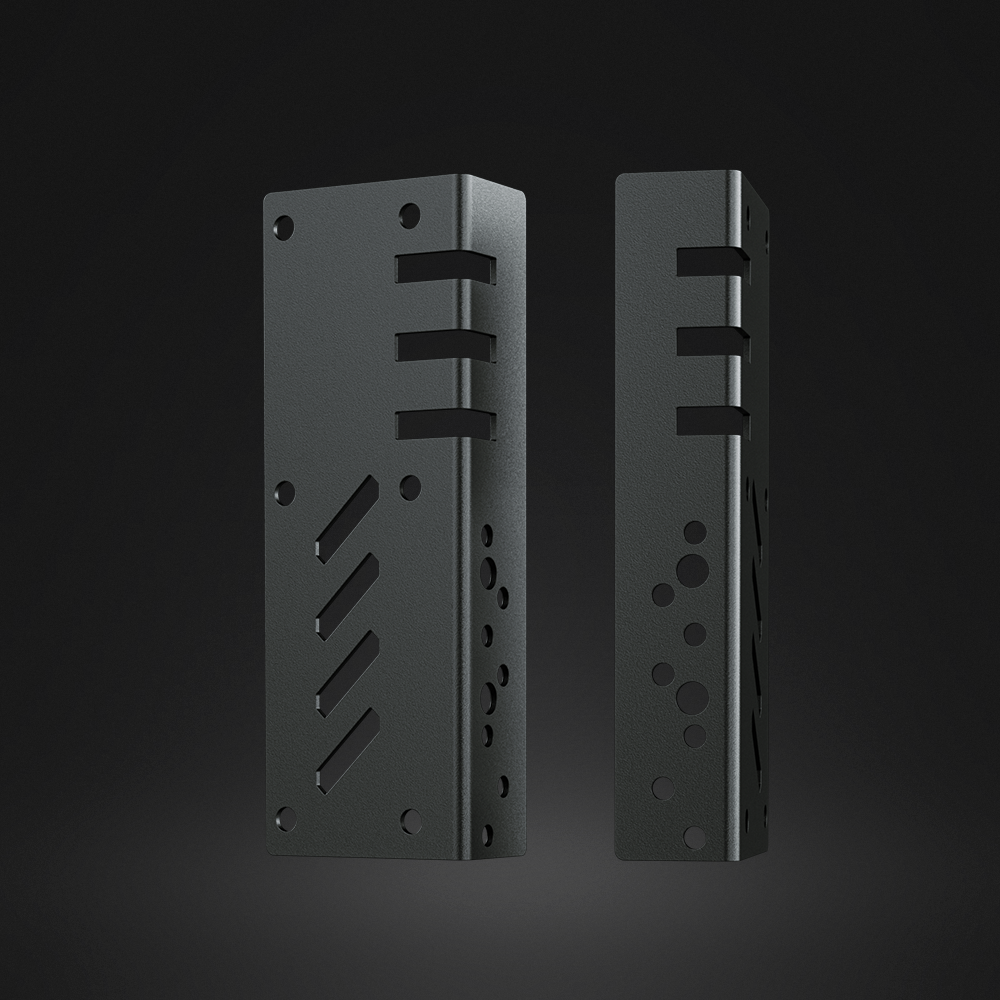

The QS-220 3DoF motion set equipped with dedicated brackets allowing precise customization for an immersive racing adventure. These adaptable brackets seamlessly integrate actuators into popular aluminum based cockpits, delivering unwavering stability and an exhilarating virtual racing experience.

Mounting Options

Discover how quickly and conveniently you can mount the QS-220 set to your cockpit. Whether you prefer the first mounting option for a simple setup or the second option for greater versatility, the QS-220 brackets provide hassle-free motion platform installation to suit your needs.

In-House Software

Qubic Manager is a in-house professional and specialized software for motion platforms. It is plug-and-play compatible with all major racing and flight titles on PC and is continually updated to support new titles as they are released.

The Qubic Manager is a powerful engine, yet it’s simple to use, allowing you to easily adjust levels of motion, bumps, roll, and pitch with a click of a button.

User manual Download Software Product Card
  • 2x actuators QS-220 with stabilization plate
  • 1x QS-220 Power Cabinet
  • 1x QS-MC6 (MOTION-LOCK Switch + M10 Controller)
  • 1x Pivot leg for QS-220 2.5DoF configuration
  • 2x Mounting Bracket set for actuator
  • 1x Set of cables
  • 1x Set of screws
  • 1x Power cord (type to be chosen upon the order: EU or UK or US or AU)
Shipping Only (no pickup)

At this time, we do not offer in-store pickup, curbside pickup, or ship-to-store.

All items are available shipping only and will be delivered to the address provided at checkout.

Processing Times

Processing time depends on product availability:

  • In-stock items: typically ship within 1–3 business days.
  • Made-to-order / pre-order items: within 1–2 business days after you place your order, we will contact you (or update your order) with the estimated shipping timeframe.
Delivery & Tracking

Once your order ships, you’ll receive a confirmation email with:

  • Your tracking number / tracking link
  • Carrier and shipment details (when available)

Please note: delivery time starts after the package is handed over to the carrier and can vary depending on your location and carrier performance.

How Shipping Works
  1. Choose your product options (color/size/quantity, if applicable).
  2. Proceed to checkout and enter your shipping details.
  3. Place your order and you’ll receive an order confirmation email.
  4. We process your order according to the product’s availability (in-stock or made-to-order).
  5. When your order ships, we email your tracking information.
  6. Track your package and receive it at the delivery address provided.
Important Notes
  • Address changes: If you need to update your shipping address, contact us ASAP. Changes are possible only before the order ships.
  • Split shipments: If your order contains items with different availability, we may ship them separately (when it improves delivery speed).
  • Delays: Carrier delays can happen during peak periods, severe weather, or customs inspections (for international shipments).
  • Undeliverable packages: If a package is returned due to an incorrect address or failed delivery attempts, additional shipping costs may apply.
Questions?

If you have any questions about shipping or your order status, contact us at contact@apexone.shop or use the form below - we’ll help quickly.

Specifications

Brand

Qubic system

Product type

Actuators

Technical specs

  • Architecture

    2.5 DOF

  • Payload

    175 kg

  • Weight

    33 kg

  • Total length

    90 mm

  • Total width

    90 mm

  • Min height

    553 mm

  • Vibrations frequency range

    0-100 Hz

  • Connection

    USB

Performance

  • Actuator stroke

    100 mm

  • Maximum velocity

    Q-Mode (230V): 800 mm/s, Performance Mode (115V/230V): 400 mm/s, Heavy Duty Mode (115/230V): 300 mm/s

  • Maximum acceleration

    Q-Mode (230V): 0.8G, Performance Mode (115V/230V): 0.7G, Heavy Duty Mode (115/230V): 0.4G

  • Latency

    < 8 ms

Powering

  • Power supply requirements

    115/230 VAC Single Phase

  • Average power consumption

    2.5DOF Q-Mode: 130W (230V), Performance: 140W (230V), 135W (115V), Heavy Duty: 218W (230V), 231W (115V)

  • Peak current for breaker specification

    2.5DOF Q-Mode: 2.59A (230V), Performance: 2.28A (230V), 3.68A (115V), Heavy Duty: 2.94A (230V), 4.95A (115V)

Frequently asked questions

What is QS-220?

QS-220 is a modular linear-actuator motion system built for realistic motion textures and real-time vibrations (up to 100 Hz), with very low latency (<8 ms) and high control frequency (up to 1000 Hz).

What motion configurations (DOF) can QS-220 support?

Depending on the number of QS-220 modules and the cockpit configuration, QS-220 can be built as 2 / 3 or even 4 / 5 / 6 DOF when working in motion cockpits.

What are the key performance specs of QS-220 actuators?

Actuator stroke is 100 mm (3.93"). Maximum velocity is up to 800 mm/s (Q-Mode on 230V) and the system supports real-time vibrations in the 0–100 Hz range, with latency below 8 ms.

What power supply is required?

115/230 VAC single-phase power (region dependent). The system connects to the PC via USB (through the motion controller set)

What software is used? Is it included?

Qubic Manager is used to configure and run the system. The software license is free-of-charge.

Can it be used for VR?

Yes. Qubic Manager supports VR HeadWay (VR motion compensation) to reduce unwanted VR tracking effects caused by platform movement.

What’s the difference between QS-220 and QS-210?

QS-220 is the larger, higher-stroke system (100 mm vs 60 mm on QS-210) designed for bigger motion envelopes and heavier-duty applications. It also supports higher maximum velocity modes (up to 800 mm/s in Q-Mode) and higher recommended payloads in 3DOF configurations compared to QS-210.

What is the Pivot Set?

It’s a QS-220 starter set bundled with the QS-Pivot accessory to change/optimize the motion geometry and enhance certain sensations in compact setups.

Who is the Pivot Set for?

Users who want more pronounced sensations from a compact footprint without moving directly to a multi-module (higher DOF) configuration.
