QS-220 3DOF Full Actuators Set

38.760,00 zł
38.760,00 zł 38.760,00 zł
Tax included. Shipping calculated at checkout.

The complete QS-220 3DOF actuator motion package in one purchase. Built around high-stroke QS-220 actuators for stronger motion range, higher payload capability, and real-time vibration detail. A full solution for serious sim racing and professional simulation setups.

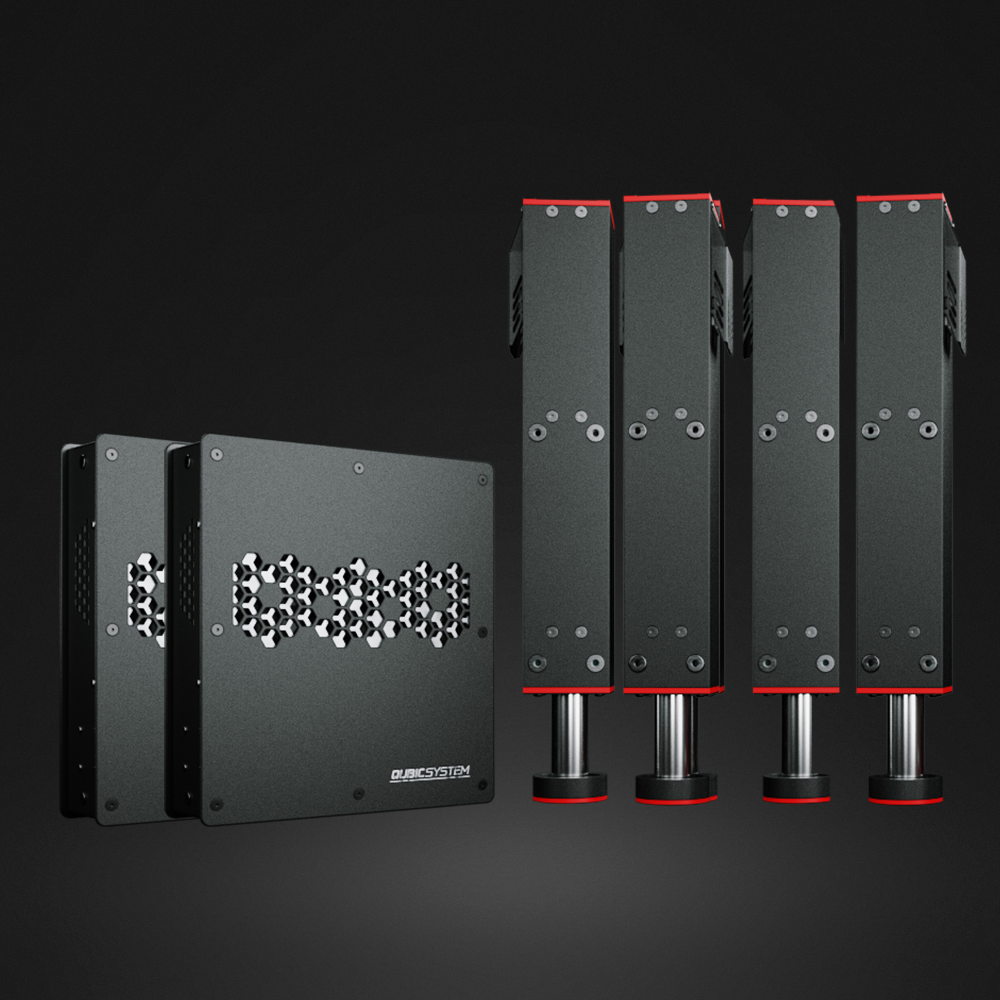

This package configuration consisting of four actuators with 100mm/3,93in stroke, two power cabinets and one motion controller. The 3DOF motion system is dedicated to all racers who expect the most realistic and precise simulation. Incredible levels of vehicle feedback to the driver allows feeling exactly what the vehicle is doing in real time.

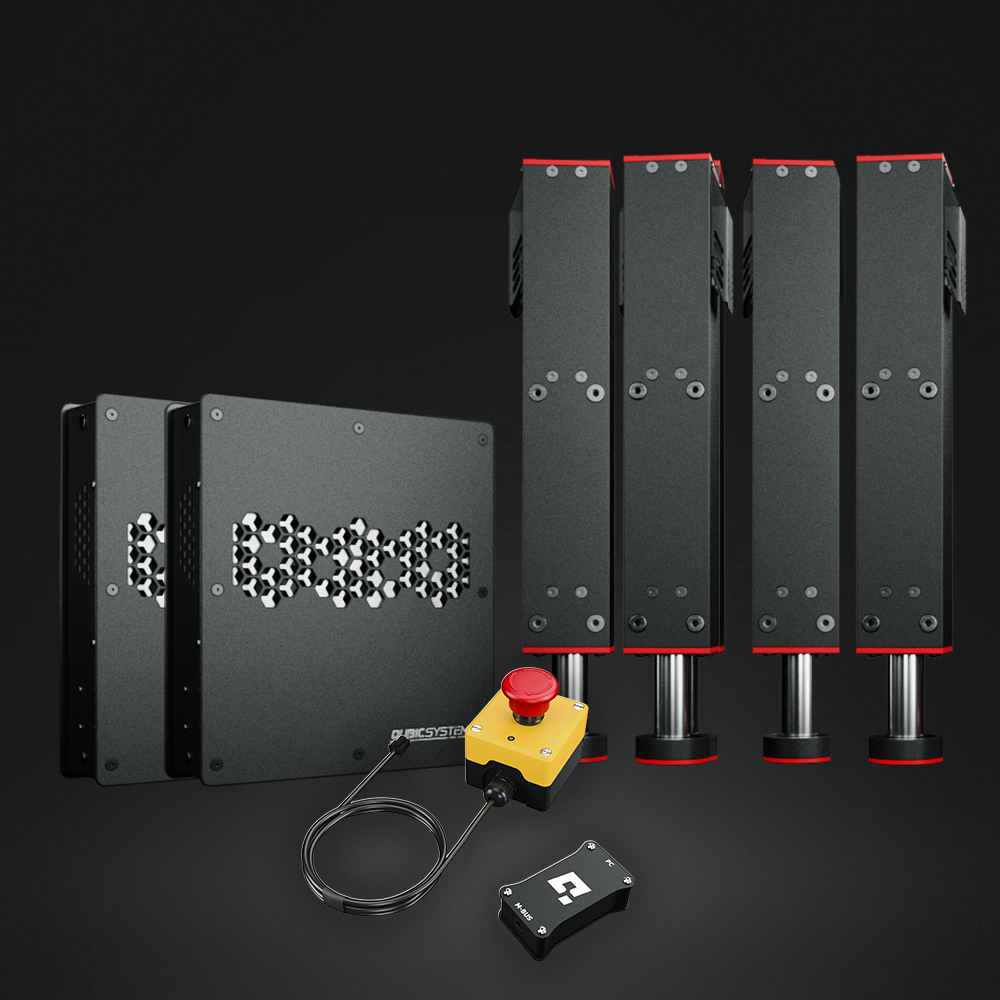

QS-220 3DOF Full Actuators Set - What’s included (bundle contents)

  • 2 x QS-220 - Full 3DOF actuator package (4 actuators total)
  • 2 x Power cabinets (for the included actuator sets)
  • QS-MC6 (MOTION-LOCK Switch + M10 Controller)
  • Interlink cables
  • Power cables (region specific)
Power plug: EU
Brand: Qubic System
Availability: 5 in stock
SKU: QS-220-3DOF-EU
Collections:
38.760,00 zł
38.760,00 zł 38.760,00 zł

The QS-220 3DOF Full Actuators Set is the complete multi-actuator configuration for users who want a full-scale actuator motion system from day one. It delivers a much larger motion envelope than compact entry solutions thanks to the 100 mm stroke QS-220 actuators, while maintaining the low-latency response and high-frequency road texture that define the Qubic ecosystem. The result is a highly convincing driving experience with stronger cues during braking, acceleration, cornering transitions, curb strikes, and surface changes. During the competition, drivers can feel every possible detail noticeable in a real race (including motor vibrations, road surface, bumps, shunting effects etc.) Due to 3DOF set you can feel like at real racing session directly from your home.

QS-220 is engineered for demanding sim racing and professional simulation use where motion range, precision, and payload capability matter. Real-time vibration detail up to 100 Hz helps you feel fine texture and micro-events in the chassis, while Qubic Manager provides game-specific profiles and deep tuning options for intensity, filtering, and motion behavior. The system is linear, efficient, and designed for stable long-session operation.

This full set is also the cleanest path if you already know you want 3DOF. It avoids a staged upgrade process and gives you the complete architecture in a single package. Installation integrates into popular aluminum-profile cockpits, and the included control electronics provide safe operation through the Motion-Lock system and straightforward PC connectivity.

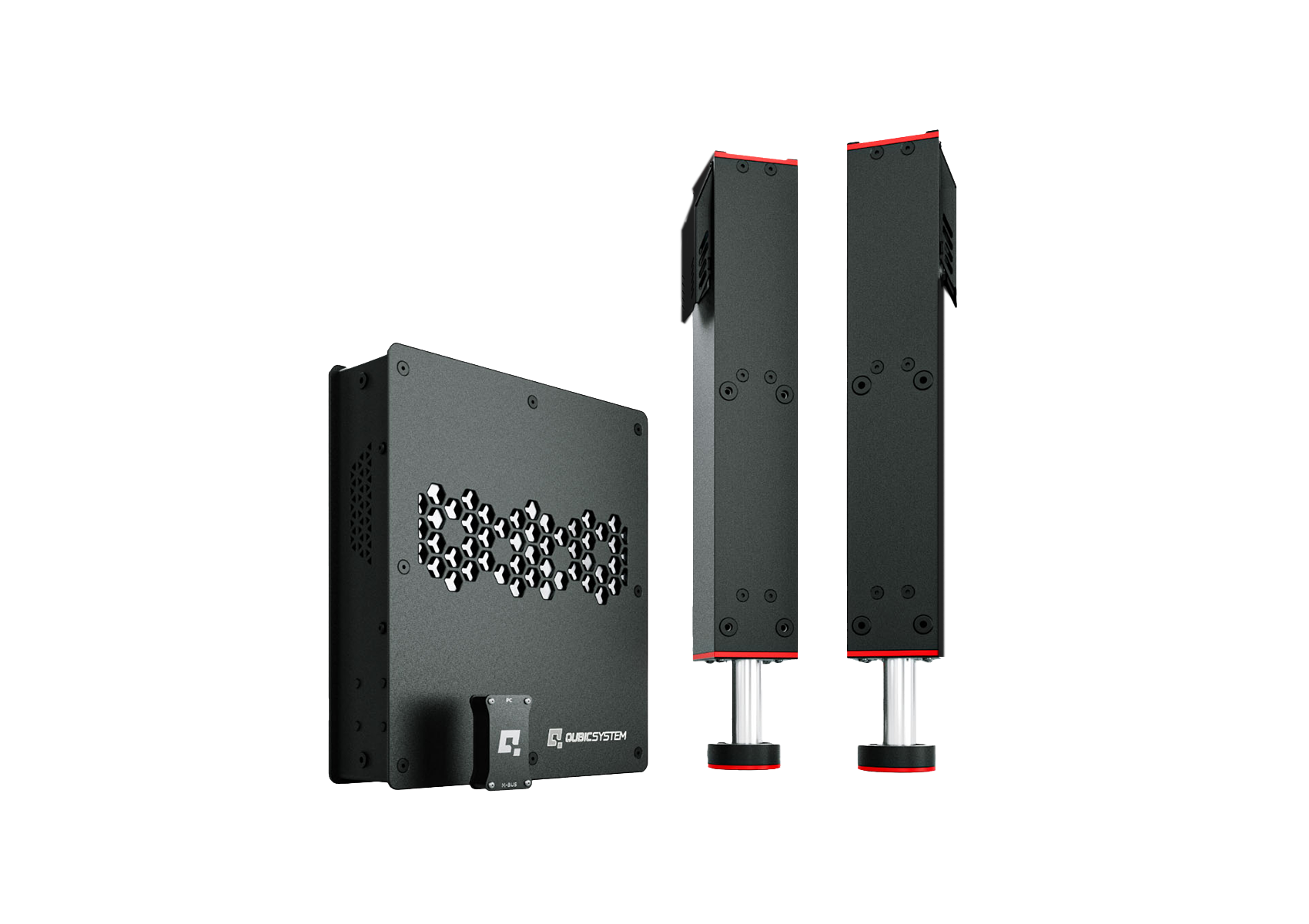

Intro Set

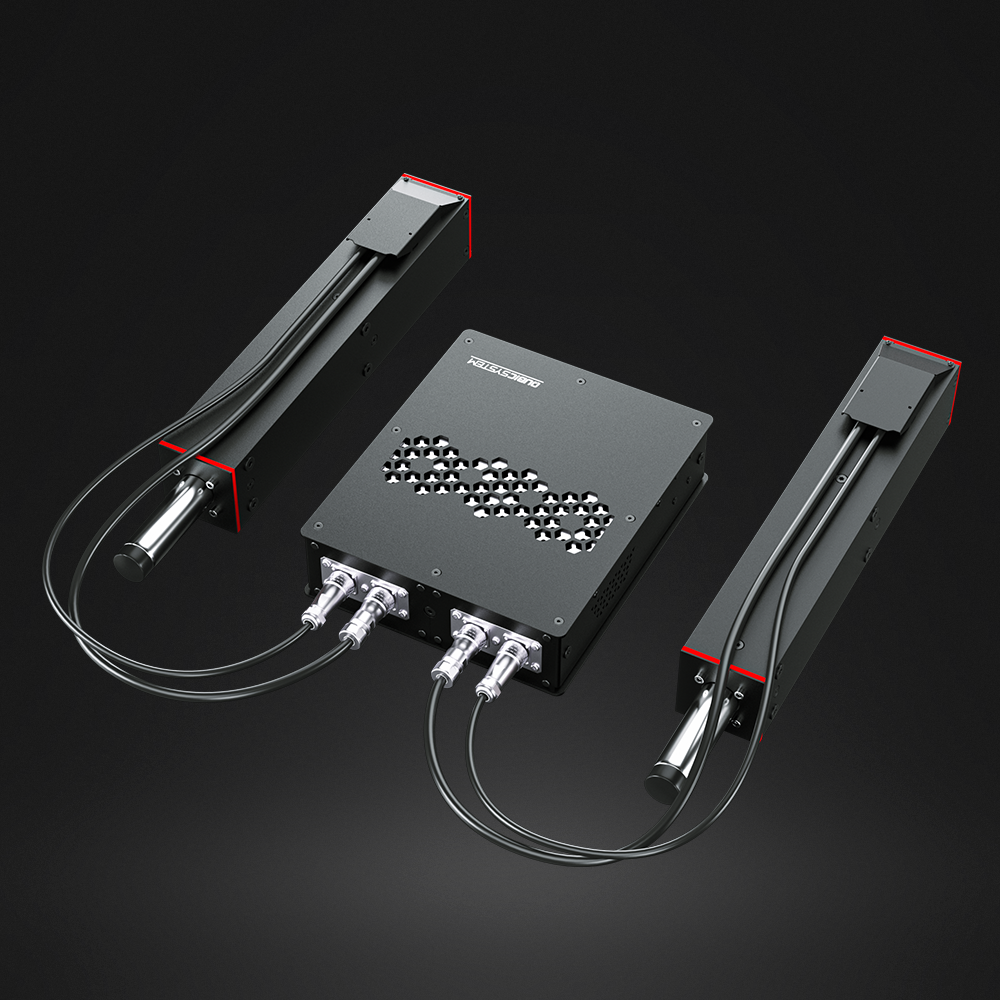

The QS-220 motion set consisting of two actuators with 100mm/3.93in stroke, power cabinet and motion controller (QS-MC6) is the perfect solution for all drivers who start their adventure with simracing and want to come into the virtual world of competition or need a 2DOF as a first motion platform. Undoubtedly, one of the greatest advantages of the Qubic System brand is the ability to seamlessly expand the motion system with additional actuators kit, quickly and easily creating extraordinary and original motion cockpits.

Plug & Perform

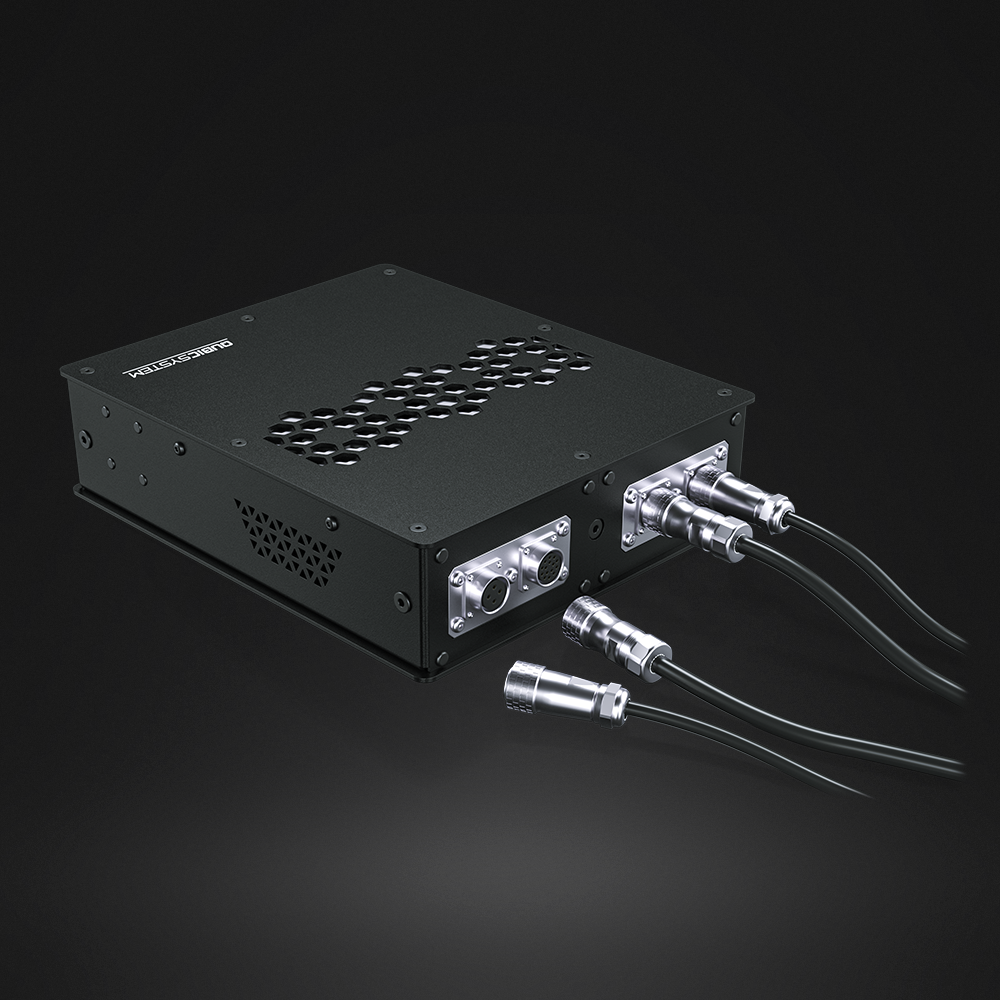

We’ve equipped our latest power cabinets and actuators with a new generation of connectors. Built with a chrome-plated brass shell and a shielded structure, they offer solid robust protection against electromagnetic interference.

This protects your health and EMC-sensitive equipment because such protection is impossible with plastic connectors massively used in the simracing/simulation market (they are not properly shielded).

What’s more, they’re fully detachable, which makes installation very easy without the need for technical skills and far less time-consuming.

Enhance Stability

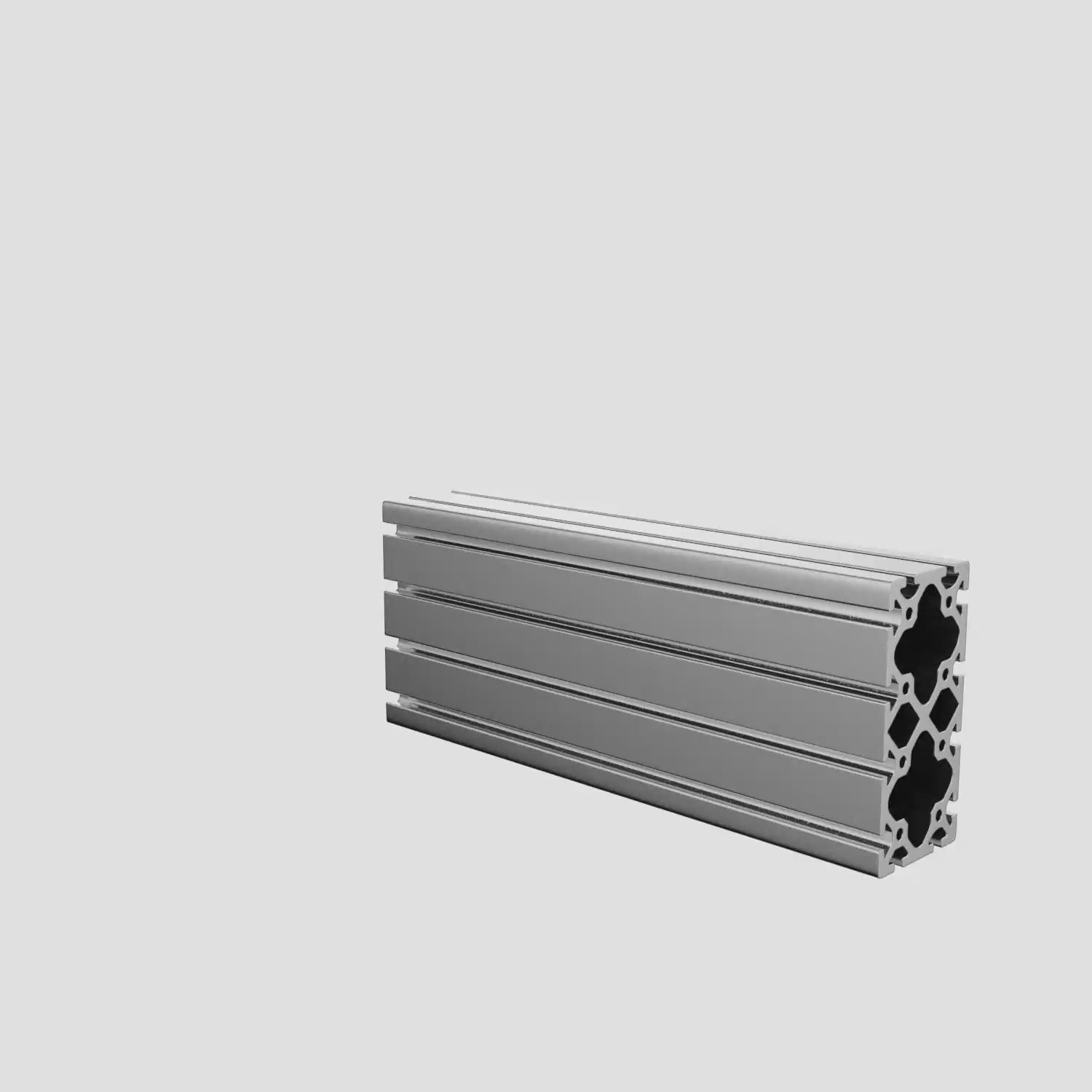

The QS-220 3DoF motion set equipped with dedicated brackets allowing precise customization for an immersive racing adventure. These adaptable brackets seamlessly integrate actuators into popular aluminum based cockpits, delivering unwavering stability and an exhilarating virtual racing experience.

Mounting Options

Discover how quickly and conveniently you can mount the QS-220 set to your cockpit. Whether you prefer the first mounting option for a simple setup or the second option for greater versatility, the QS-220 brackets provide hassle-free motion platform installation to suit your needs.

In-House Software

Qubic Manager is a in-house professional and specialized software for motion platforms. It is plug-and-play compatible with all major racing and flight titles on PC and is continually updated to support new titles as they are released.

The Qubic Manager is a powerful engine, yet it’s simple to use, allowing you to easily adjust levels of motion, bumps, roll, and pitch with a click of a button.

User manual Download Software Product Card

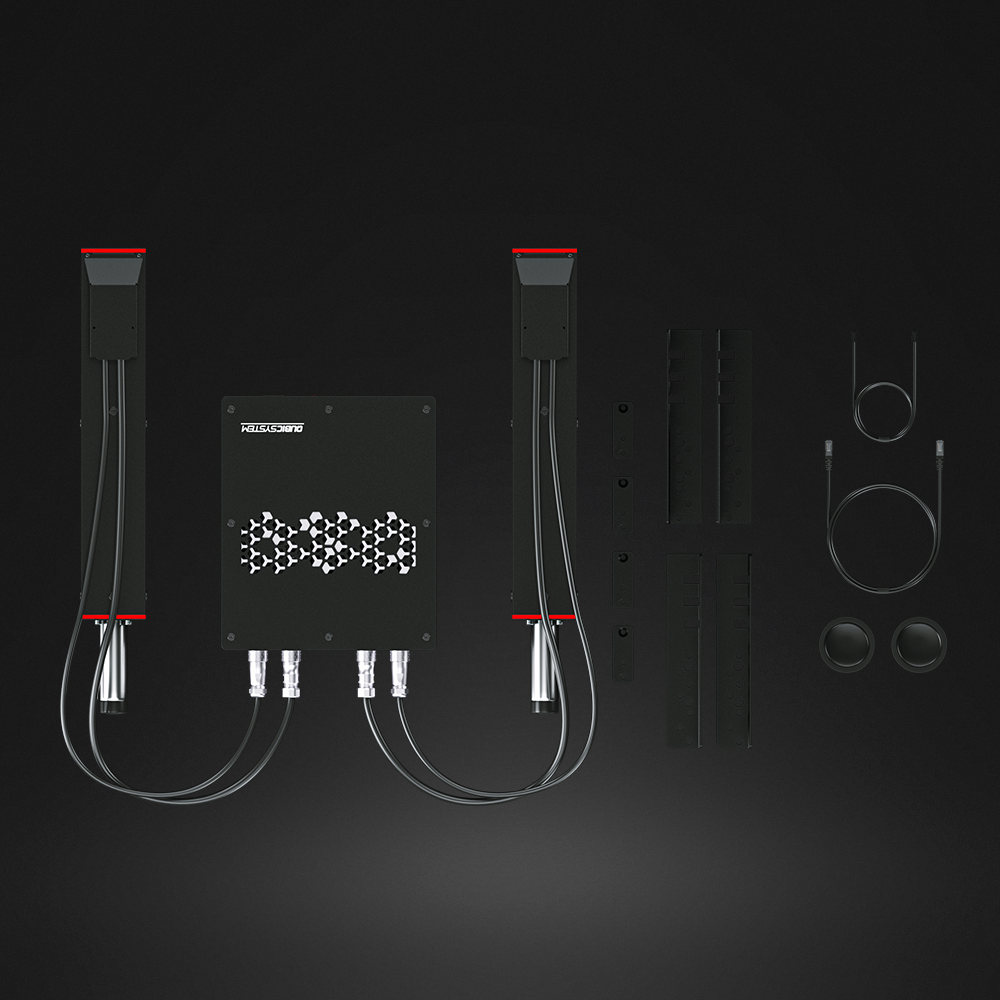

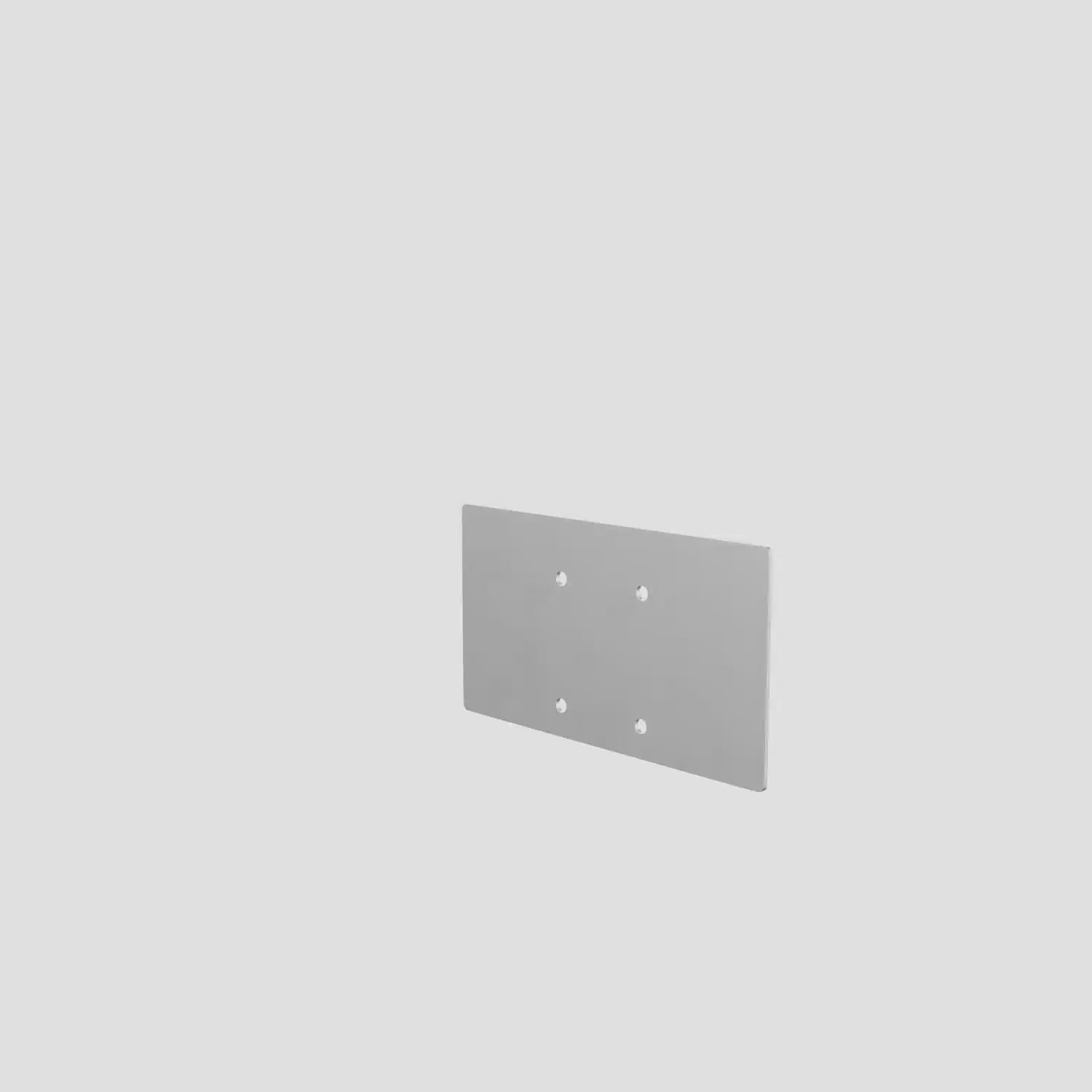

  • 4x QS-220 linear actuators with stabilization plates (4 pcs) actuator brackets included)
  • 2x QS-220 Power cabinet (control module)

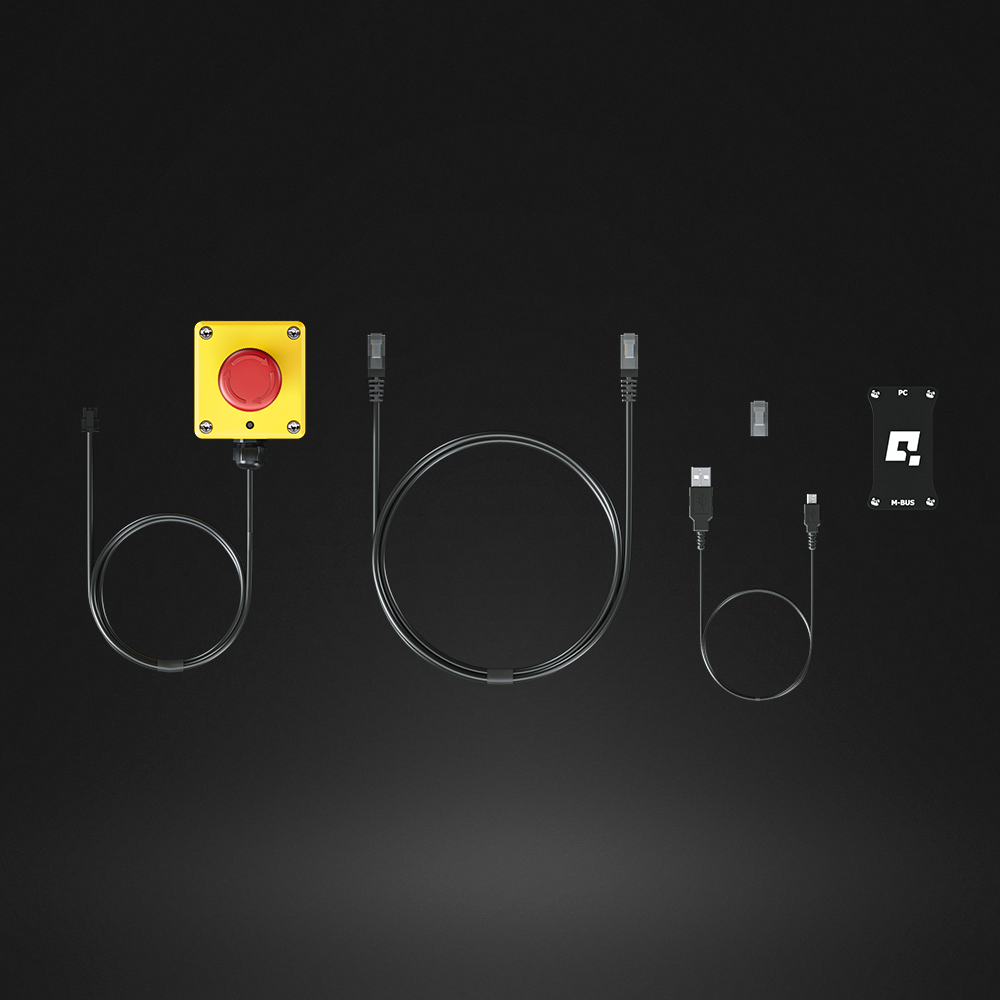

  • 1x QS-MC6 – M10 – USB Controller
  • 1x MOTION-LOCK Switch with additional 2 m cable
  • 1x M-BUS terminator
  • 2x Power cable
  • 1x 0.5m USB cable micro B
  • 1x 2m Patchcord cable
Shipping Only (no pickup)

At this time, we do not offer in-store pickup, curbside pickup, or ship-to-store.

All items are available shipping only and will be delivered to the address provided at checkout.

Processing Times

Processing time depends on product availability:

  • In-stock items: typically ship within 1–3 business days.
  • Made-to-order / pre-order items: within 1–2 business days after you place your order, we will contact you (or update your order) with the estimated shipping timeframe.
Delivery & Tracking

Once your order ships, you’ll receive a confirmation email with:

  • Your tracking number / tracking link
  • Carrier and shipment details (when available)

Please note: delivery time starts after the package is handed over to the carrier and can vary depending on your location and carrier performance.

How Shipping Works
  1. Choose your product options (color/size/quantity, if applicable).
  2. Proceed to checkout and enter your shipping details.
  3. Place your order and you’ll receive an order confirmation email.
  4. We process your order according to the product’s availability (in-stock or made-to-order).
  5. When your order ships, we email your tracking information.
  6. Track your package and receive it at the delivery address provided.
Important Notes
  • Address changes: If you need to update your shipping address, contact us ASAP. Changes are possible only before the order ships.
  • Split shipments: If your order contains items with different availability, we may ship them separately (when it improves delivery speed).
  • Delays: Carrier delays can happen during peak periods, severe weather, or customs inspections (for international shipments).
  • Undeliverable packages: If a package is returned due to an incorrect address or failed delivery attempts, additional shipping costs may apply.
Questions?

If you have any questions about shipping or your order status, contact us at contact@apexone.shop or use the form below - we’ll help quickly.

Specifications

Brand

Qubic system

Product type

Actuators

Technical specs

  • Architecture

    3 DOF

  • Payload

    350 kg

  • Weight

    60 kg

  • Total length

    90 mm

  • Total width

    90 mm

  • Min height

    553 mm

  • Vibrations frequency range

    0-100 Hz

  • Connection

    USB

Performance

  • Actuator stroke

    100 mm

  • Maximum velocity

    Q-Mode (230V): 800 mm/s, Performance Mode (115V/230V): 400 mm/s, Heavy Duty Mode (115/230V): 300 mm/s

  • Maximum acceleration

    Q-Mode (230V): 0.8G, Performance Mode (115V/230V): 0.7G, Heavy Duty Mode (115/230V): 0.4G

  • Latency

    < 8 ms

Powering

  • Power supply requirements

    115/230 VAC Single Phase

  • Average power consumption

    3DOF Q-Mode: 260W (230V), Performance: 280W (230V), 270W (115V), Heavy Duty: 436W (230V), 462W (115V)

  • Peak current for breaker specification

    3DOF Q-Mode: 5.17A (230V), Performance: 4.55A (230V), 7.35A (115V), Heavy Duty: 5.88A (230V), 9.89A (115V)

Frequently asked questions

What is QS-220?

QS-220 is a modular linear-actuator motion system built for realistic motion textures and real-time vibrations (up to 100 Hz), with very low latency (<8 ms) and high control frequency (up to 1000 Hz).

What motion configurations (DOF) can QS-220 support?

Depending on the number of QS-220 modules and the cockpit configuration, QS-220 can be built as 2 / 3 or even 4 / 5 / 6 DOF when working in motion cockpit set.

What are the key performance specs of QS-220 actuators?

Actuator stroke is 100 mm (3.93"). Maximum velocity is up to 800 mm/s (Q-Mode on 230V) and the system supports real-time vibrations in the 0–100 Hz range, with latency below 8 ms.

What power supply is required?

115/230 VAC single-phase power (region dependent). The system connects to the PC via USB (through the motion controller set).

What software is used? Is it included?

Qubic Manager is used to configure and run the system. The software license is free-of-charge.

Can it be used for VR?

Yes. Qubic Manager supports VR HeadWay (VR motion compensation) to reduce unwanted VR tracking effects caused by platform movement.

What’s the difference between QS-220 and QS-210?

QS-220 is the larger, higher-stroke system (100 mm vs 60 mm on QS-210) designed for bigger motion envelopes and heavier-duty applications. It also supports higher maximum velocity modes (up to 800 mm/s in Q-Mode) and higher recommended payloads in 3DOF configurations compared to QS-210.

What is included in the QS-220 Full Actuator Set?

A complete bundle that includes 2 x QS-220 motion sets (4 actuators) + power cabinet + QS-MC6 motion controller set required to connect and control the system from the PC. Power cable seleted.

What payload can QS-220 handle in 3DOF configurations?

In a 3DOF configuration using 2x QS-220 modules, the recommended payload depends on the selected mode: Q-Mode: 200 kg, Performance Mode: 250 kg, Heavy Duty Mode: 350 kg
