QS-S35 6DOF Motion Platform

€71.240,95
€71.240,95
VAT included. Final tax and shipping calculated at checkout based on delivery address.

Experience next-level immersion with the QS-S35 6DOF motion platform – delivering smarter, more dynamic motion cues that recreate every acceleration, tilt, and drop with unmatched precision for racing, flight, and advanced simulation.

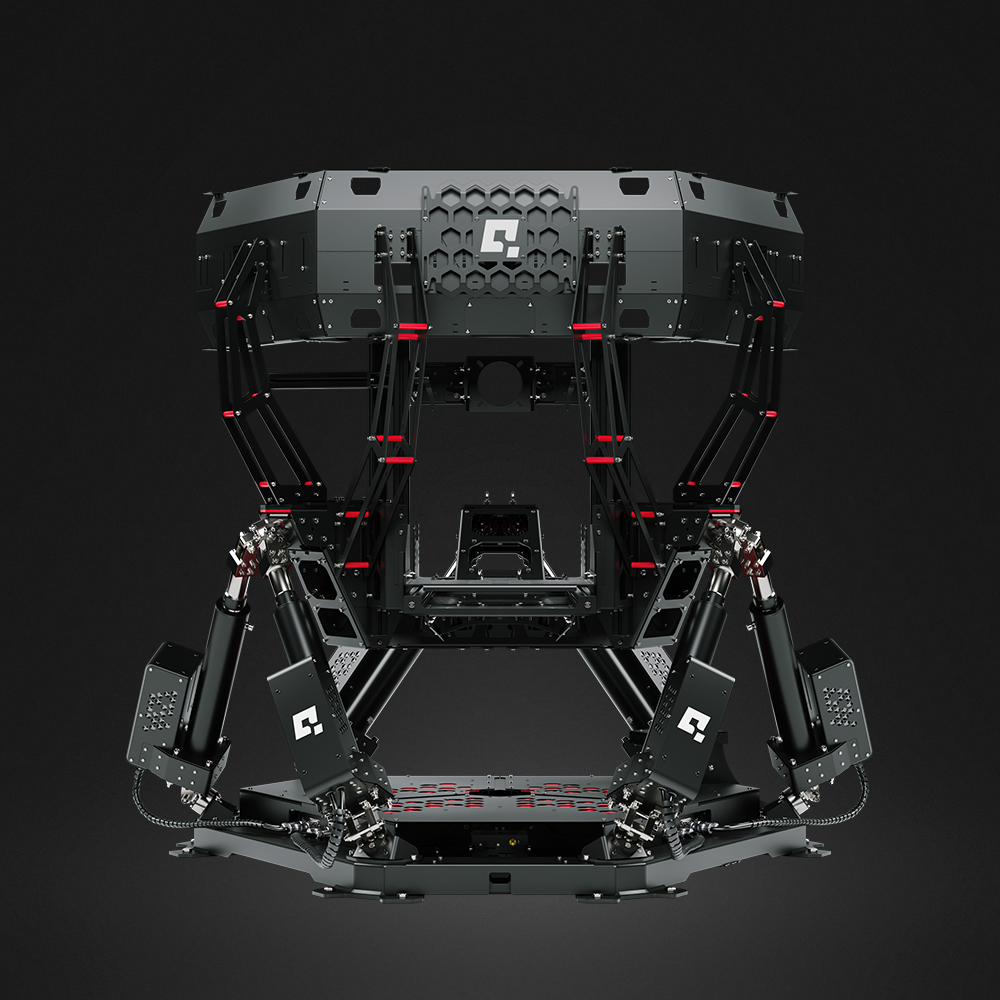

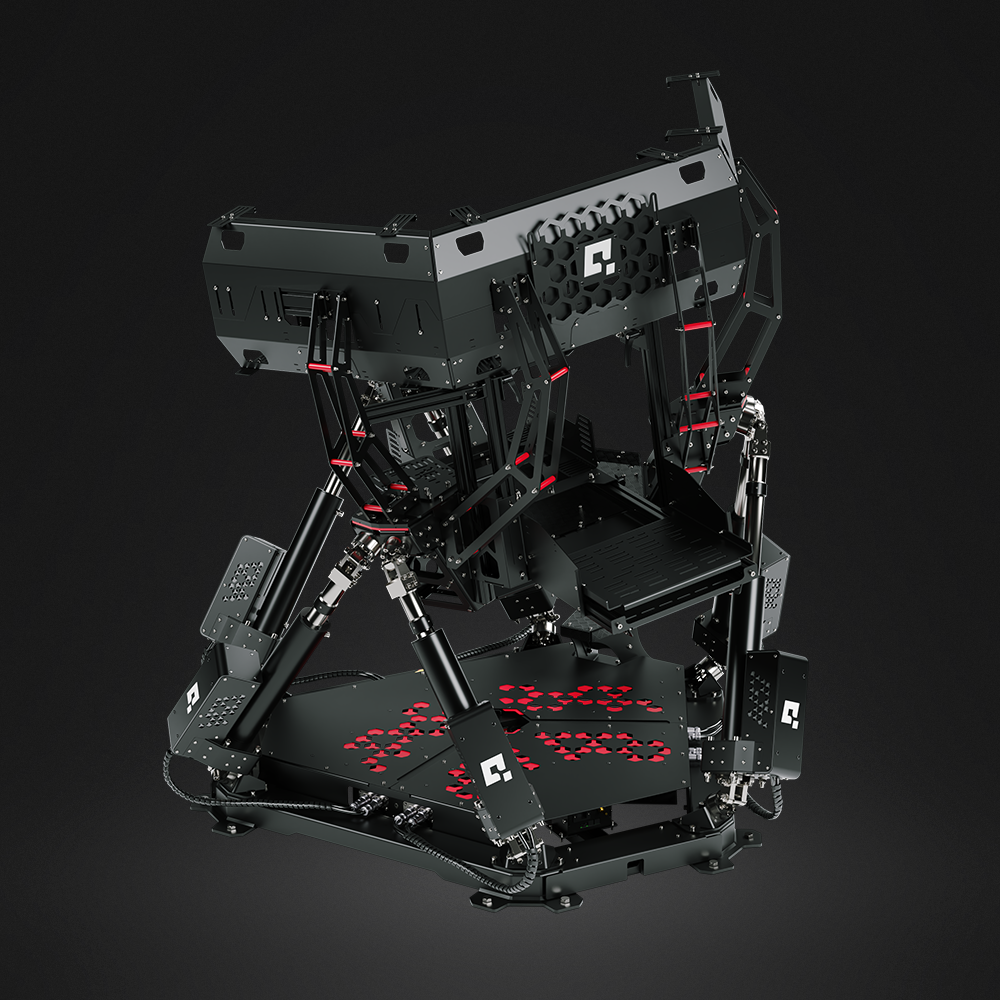

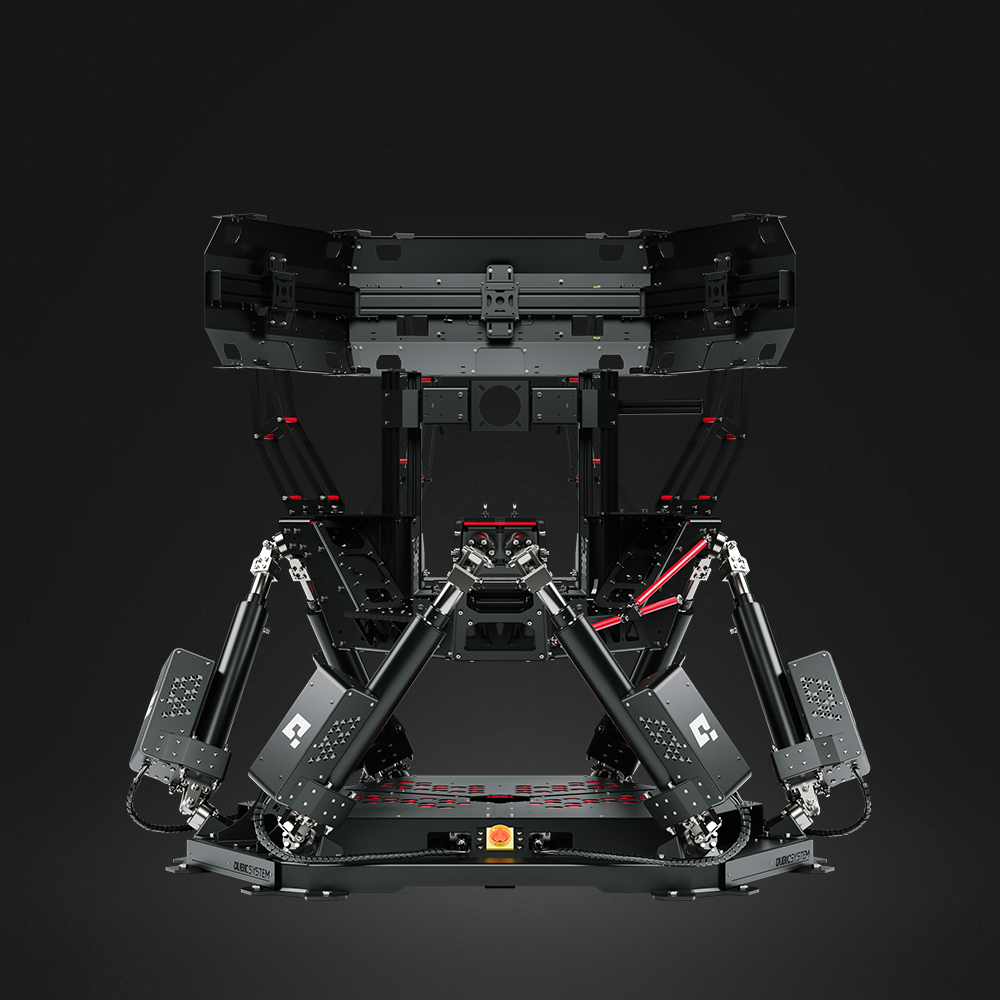

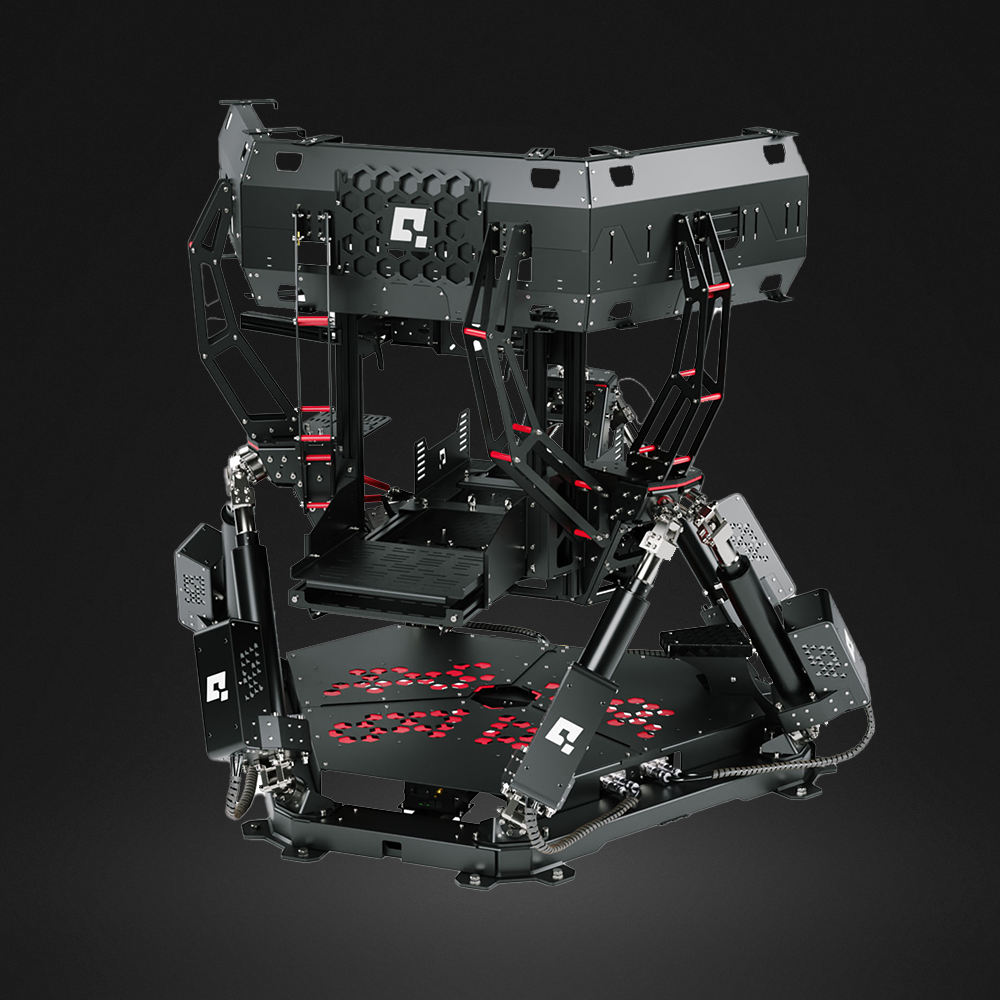

QS-S35 is a full-size 6DOF motion platform designed for demanding sim racing, professional training, and high-end entertainment installations. It delivers a wide motion envelope, fast response, and precise control so you can feel braking and acceleration cues, cornering balance, traction changes, and detailed surface feedback in real time. Built for stability, high payload, and long-session reliability.

Reviews of Apex One Shop

Read all reviews on Trustpilot
Brand: Qubic System
Availability: Low stock: 2 left
SKU: QS-S35
Ean: 5904121191317
Collections:
€71.240,95
€71.240,95
VAT included

  • Manufacturer warranty

    Buy with peace of mind. Your equipment is covered by the manufacturer’s warranty, and we respect your rights as a buyer.

  • Direct Factory Shipping

    Shipped directly from the manufacturer’s warehouse to ensure the fastest delivery times and the latest hardware revisions.

  • Expert Support for Simracers

    Need help with your setup? Our team of active simracers is here to assist you with installation and optimization.

The QS-S35 is a heavy-duty 6DOF motion platform built for users who want maximum realism and a stable foundation for serious simulation. With a wide motion envelope and responsive control, it reproduces weight transfer, curb strikes, grip changes, and chassis balance with clarity and consistency. It is suited for advanced home simulators and commercial environments alike, including driver training, R and D labs, and entertainment venues.

One of the key strengths of QS-S35 is its combination of payload capacity and motion precision. The platform is engineered to stay controlled and predictable under high loads while still delivering fine detail through real-time motion cues and surface texture. Everything is managed through Qubic Manager with game-specific profiles and deep tuning options, allowing you to tailor the motion behavior to your rig, content, and comfort level.

QS-S35 is designed as a complete cockpit platform with integrated mounting solutions and a clear accessory path across the Qubic ecosystem. For safe operation it requires proper installation and anchoring, especially in high-intensity commercial or training use cases.

QS-MC6 controller with a USB-C port for connection to your computer. USB-C cable included.

Proffesional Grade

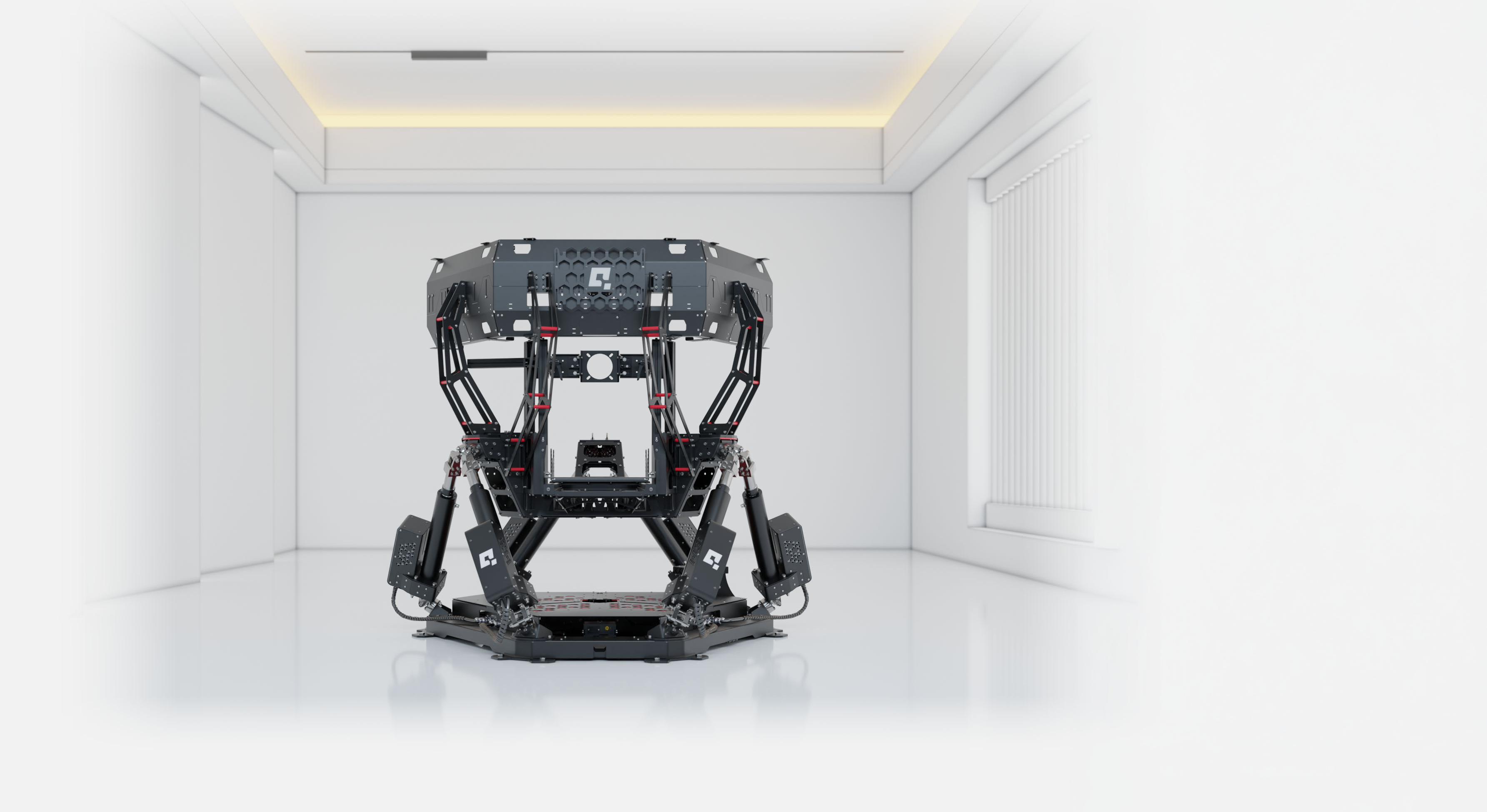

Despite its power, the QS-S35 operates almost silently thanks to the implementation of technology acquired during years of experience in multi-million driving simulator projects .

This ensures an undisturbed experience, ideal for training facilities, esports centers, and professional home setups, where noise reduction is key.

Qubic Manager Software

Qubic Manager is software developed by the hardware manufacturer to configure and operate motion platforms. It works with many racing and flight simulators on PC; the list of supported games grows with software updates.

Profiles and settings let you adjust motion intensity, responses to bumps, roll and pitch to your preferences.

Qubic Manager
User manual Download Software Product Card
  • QS-S35 motion system set containing dedicated upper and bottom frame
  • Cockpit set
  • Monitor Mounting Bracket: 3x monitor (32'', VESA 100x100)
  • Motion controller
  • Motion lock
  • Set of cables
  • Power Connector Hub
  • Step
  • Set Of Wheels For Transport
  • Mounting Bracket: QS-BT1
Shipping Only (no pickup)

At this time, we do not offer in-store pickup, curbside pickup, or ship-to-store.

All items are available shipping only and will be delivered to the address provided at checkout.

Processing Times

Processing time depends on product availability:

  • In-stock items: usually dispatched within 1–2 business days after payment confirmation.
  • Made-to-order / pre-order items: within 1–2 business days after you place your order, we will contact you or update your order with the estimated dispatch timeframe.
Delivery & Tracking

Once your order ships, you’ll receive a confirmation email with:

  • Your tracking number / tracking link
  • Carrier and shipment details (when available)

Please note: delivery time starts after the package is handed over to the carrier and can vary depending on your location and carrier performance.

How Shipping Works
  1. Choose your product options (color/size/quantity, if applicable).
  2. Proceed to checkout and enter your shipping details.
  3. Place your order and you’ll receive an order confirmation email.
  4. We process your order according to the product’s availability (in-stock or made-to-order).
  5. When your order ships, we email your tracking information.
  6. Track your package and receive it at the delivery address provided.
Important Notes
  • Address changes: If you need to update your shipping address, contact us ASAP. Changes are possible only before the order ships.
  • Split shipments: If your order contains items with different availability, we may ship them separately (when it improves delivery speed).
  • Delays: Carrier delays can happen during peak periods, severe weather, or customs inspections (for international shipments).
  • Undeliverable packages: If a package is returned due to an incorrect address or failed delivery attempts, additional shipping costs may apply.
Questions?

If you have any questions about shipping or your order status, contact us at contact@apexone.shop or use the form below - we’ll help quickly.

Specifications

Brand

Qubic system

Product type

Motion platform

Technical specs

  • Architecture

    6 DOF

  • Payload

    250 kg

  • Weight

    475 kg

  • Total length

    2157 mm

  • Total width

    2157 mm

  • Min height

    1720.61 mm

  • Vibrations frequency range

    0–60 Hz

  • Connection

    USB (USB-C port on the QS-MC6 controller)

Performance

  • Surge

    Single axis: −306.2 / +283.2 mm; maximum: −366 / +364 mm; 700 mm/s; 0.76 G.

  • Sway

    Single axis: ±270.2 mm; maximum: ±316 mm; 700 mm/s; 0.76 G.

  • Heave

    Single axis: −169.9 / +173.3 mm; maximum: −169.9 / +173.3 mm; 400 mm/s; 0.51 G.

  • Roll

    Single axis: ±15.8°; maximum: ±16.5°; 35°/s; 450°/s².

  • Pitch

    Single axis: ±14.3°; maximum: −18.8° / +18.6°; 35°/s; 350°/s².

  • Yaw

    Single axis: ±22.9°; maximum: ±27.1°; 60°/s; 700°/s².

Powering

  • Power supply requirements

    Single-phase 230 V AC (±10%), 50–60 Hz, with neutral (N) and protective earth (PE). RCCB required; recommended circuit breaker: C16.

  • Average power consumption

    Manufacturer manual, 230 V, 150 kg test load: typical game 300 W; stress test 1100 W. Consumption depends on load and motion settings.

  • Average power consumption for converter specification

    2.1 kVA (230 V, 150 kg)

  • Peak current for breaker specification

    Manufacturer manual: 21 A (230 V, 150 kg test load). Have circuit protection selected for the installation in accordance with the manual.

Frequently Asked Questions

What size monitors can be mounted?

The QS-S35 platform includes dedicated, integrated monitor mounts that support three screens up to 32 inches. These mounts are part of the standard structure and are designed for stable operation during dynamic motion. For extended or custom configurations, external frames may be used.

Are there side shelves or utility trays included?

Yes. The QS-S35 features a single integrated utility shelf on one side of the platform. It is suitable for mounting accessories or control hardware.

Does the platform need to be anchored to the floor?

Yes. Anchoring is required to ensure safe and stable operation under dynamic load conditions.

How much power does the platform consume?

Manufacturer manual, 230 V, 150 kg test load: typical game 300 W; stress test 1100 W. Consumption depends on load and motion settings.

What is the maximum payload capacity?

The maximum supported payload is 250 kg (551 lb) for the basic S35 platform without additional accessories.

What environments is the QS-S35 platform suitable for?

The QS-S35 is designed for most demanding home-users and simulation enthusiasts, industrial grade training simulators, R&D labs and entertainment applications alike. Its advanced motion envelope, high precision, and real-time response makes it a perfect choice for flight simulators, driver training systems and high-end sim racing setups.

What games are supported?

List of all supported games can be viewed at https://qubicsystem.com/supported-games/

What type of power supply is required to operate the platform?

Single-phase 230 V AC (±10%), 50–60 Hz, with neutral (N) and protective earth (PE). RCCB required; recommended circuit breaker: C16. These requirements follow the manufacturer’s user manual. Have a qualified electrician check the installation and suitability of its protective devices before connection. The manual excludes IT earthing systems. For installations supplying only 120 V, including in the USA, obtain manufacturer confirmation of the requirements for the specific hardware revision before purchase or connection. Direct 120 V operation and a B20 circuit breaker are not confirmed by this manual.

Is the QS-S35 platform compatible with VR technology?

Yes. With compatible hardware and software, VR HeadWay compensates for platform movement in the VR headset tracking. Follow the compatibility and setup instructions for the selected headset and game.

Is software included, and how is it installed?

Yes, Qubic Manager software is required and can be easy downloaded. The QS-S35 serial number is needed for activation and profile setup. Qubic Manager license is free of charge.

How long does the warranty period last?

The manufacturer, Qubic System (Motion Systems), provides a 2-year warranty for non-commercial customers and a 1-year limited warranty for commercial customers, subject to its warranty terms. The manufacturer’s warranty does not affect consumers’ statutory rights against Apex One for lack of conformity.

Can I integrate the QS-S35 with QS-BT1?

Of course, there is such a possibility. Dedicated brackets are included, allowing you to easily mount the QS-BT1.
